dash
« on: February 25, 2014, 09:11:48 PM »
hi guys how easy is it to change a dash over take a grey out and fit a black one

carlton_mad

  • 3.0 CDX and now Diamond 3.0 24v
  • Administrator
  • Wanted: Life
  • *****
  • Posts: 6422
  • dartford kent
Re: dash
« Reply #1 on: February 25, 2014, 10:05:47 PM »
it isnt too difficult at all column out, end caps off the heater pods at each end, glove box out,switches and all the facia trim,the strip under the screen reveals bolts, centre console,all the switch wiring/plugs

it sounds like an "oh crap why did i ask" thing to read but it really is not bad once you get into it

there are cable ties too holding the loom to the dash!
what would life be like if we all drove fwd cars? feckin boring that's what rear drive or bust

psl

  • Hero Member
  • *****
  • Posts: 716
Re: dash
« Reply #2 on: February 26, 2014, 04:13:01 PM »
If I can do it, anyone can lol. Did it in 3 and half hours and it`s very straight forward, fiddly but well worth it

Murph

  • Administrator
  • Wanted: Life
  • *****
  • Posts: 7724
  • Location: Dartford (Kent)
Re: dash
« Reply #3 on: February 26, 2014, 06:13:12 PM »
No need to remove the column, you can lift the dash over it easily.

david vxr

  • Full Member
  • ***
  • Posts: 209
Re: dash
« Reply #4 on: February 26, 2014, 08:12:50 PM »
hi guys thanks for that how many bolts or screws is there and were are they
cheers

Murph

  • Administrator
  • Wanted: Life
  • *****
  • Posts: 7724
  • Location: Dartford (Kent)
Re: dash
« Reply #5 on: February 26, 2014, 09:19:44 PM »
Remove end pods - prize off outer cover then 3 screws each.
Remove centre console - 2 screws by oddments tray at front, 1 screw each side in footwell, 2 screws under armrest storage compartment.
Remove steering wheel.
Remove column shroud - 5 screws.
Remove all switches and blanks.
Remove left hand centre vent - prize out with screwdriver. 1 screw behind there.
Remove stereo.
Remove heater controls - 2 screws at bottom and disconnect cables.
Remove instrument surround - srews behind headlight switch, blank at bottom below headlight adjuster, 1 below lighter next to heater control screws, 1 behind switch blank on left of instruments, 2 above instruments.
Remove instrument cluster ' screws at each end and 1 at top.
Remove ashtray - screws at either side.
2 screws above stereo aperture.
Remove fash centre section.
Screws at either end of dash.
Remove dash vent trim at base of windcreen - 1 screw at each end. 3 10mm bolts underneath.
Bolts at bottom of dash where console attaches.

That should get you to the point of removing the dash. Look for cable ties holding the loom in place and take note of how it routes across the car.

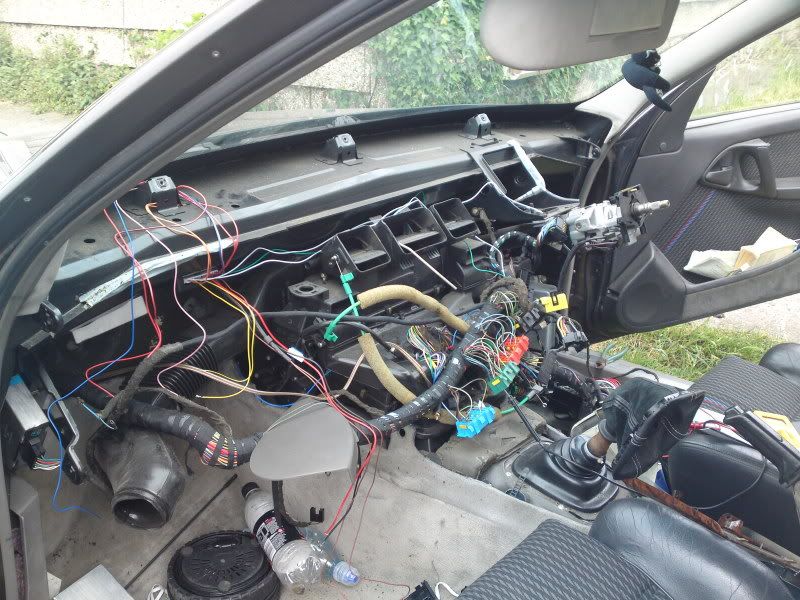

Then you will have this.


Its not as bad as it sounds and you will ask yourself why you did this to yourself, but it all goes back in pretty easily.
Apologies if I missed something but someone will shout if I have.

YasmineLee

  • Wanted: Life
  • ******
  • Posts: 1412
  • Location : South Ockendon, Essex
Re: dash
« Reply #6 on: February 26, 2014, 10:13:01 PM »
nice pic murph but we need a pic of how the dash looks after its removed.
Cars
'93 Vauxhall Carlton 3.0 24v A Diamond
'93 Vauxhall Senator 3.0 CD (C40SE Rep)
'93 Vauxhall Carlton 3.0 24v Diamond (C40E Rep)
'96 Vauxhall Frontera 2.8 TDI Diamond LWB
Vans
'00 Vauxhall Movano 2.8 TD LWB Hi Top Van
Bikes
'91(K) Suzuki GSX 600F
'04 (54) Piaggio X9 500 Evolution

24vman

  • Mini's and Carltons
  • Global Moderator
  • Hero Member
  • *****
  • Posts: 995
Re: dash
« Reply #7 on: February 26, 2014, 10:36:43 PM »
No need to remove the column, you can lift the dash over it easily.

As long as the steering wheel comes off :)
1986 Rover Vitesse, 1988 GSI 12v turbo, 1991 GSI 24v, 1993 Diamond 4.0 24v, Hayter 14hp

Murph

  • Administrator
  • Wanted: Life
  • *****
  • Posts: 7724
  • Location: Dartford (Kent)
Re: dash
« Reply #8 on: February 26, 2014, 11:29:44 PM »
nice pic murph but we need a pic of how the dash looks after its removed.
Oooh meow lol
